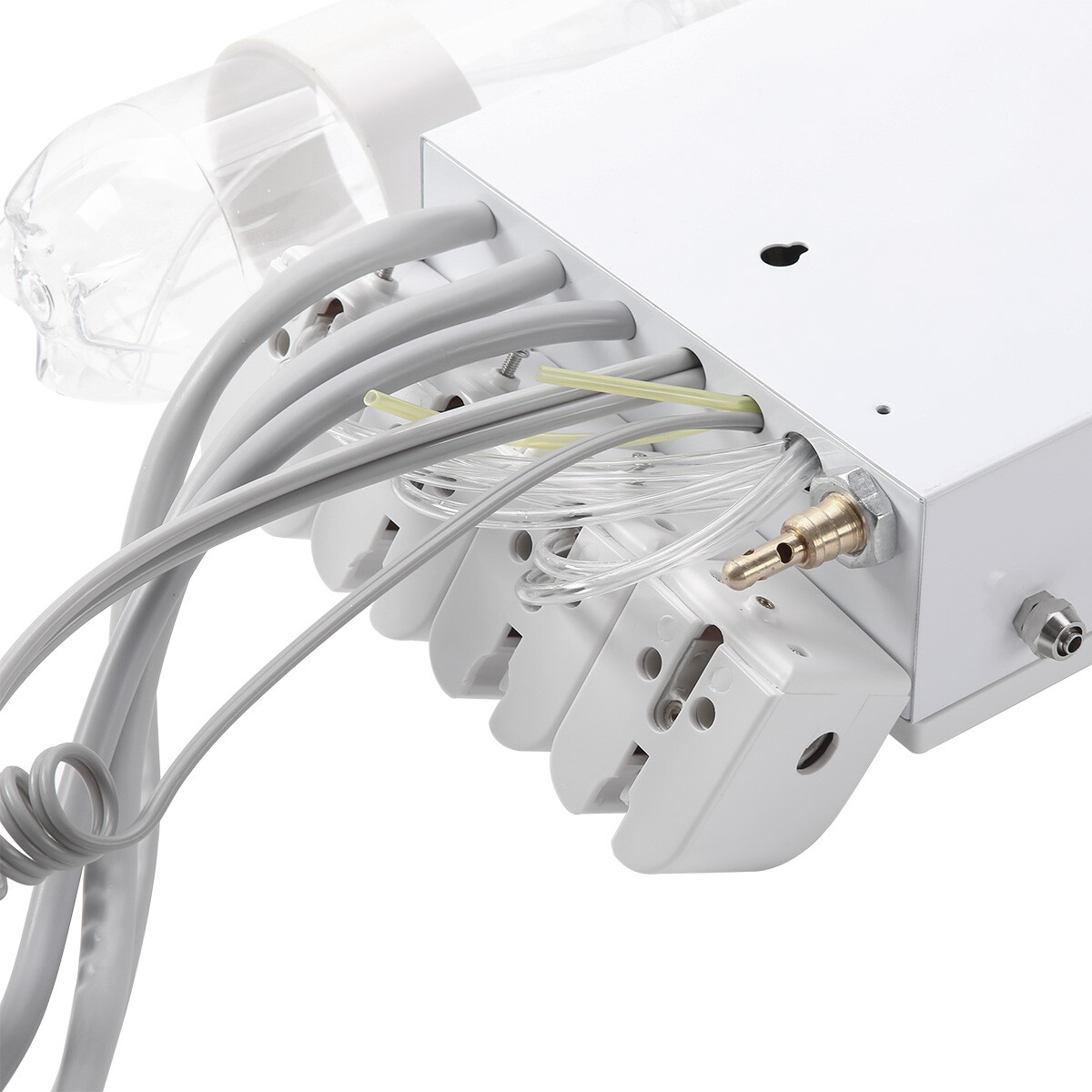

Portable Dental Turbine Unit Weak Suction Work With Air Compressor



Portable Dental Turbine Unit with Weak Suction Work with Air Compressor 4 /2Hole

Technical parameters:

Control way: Pneumatic control

Handpiece interface: International universal interface

Water pressure: 0.1Mpa~0.25Mpa

Air pressure for handpiece: 0.01Mpa~0.4Mpa

Air Pressure input: 4-8kg.

Air pressure output: 0-5kg

Water pressure input: 2kg

Water pressure output: 0-2kg

Package list:

1 x Main unit

2 x hand-piece tube （4 hole）

1 x saliva ejector

1 x 3-way syringe

1 x Foot switch

1 x Water bottle.

1 x Plastic tube (connects to air-compressor)

***************************************************************************************

Dental Pana Max LED High & wrench low Speed Handpiece 4/2 Holes Air Turbine kit

This High speed and low speed handpiece complete kit includes:
1. New NSK Dental Slow Low Handpiece Kit Straight Nose Cone + Contra Angle + Air Motor 2H
2. NSK PANA Air Dentist Dental Fast High Speed Handpiece Standard Push Button Single Spray 2 Holes

Features about low speed handpiece:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

Features about high speed handpiece:
NSK style Pana Air high speed handpiece
2-hole standard push button handpiece
Single water spray
Chucking power of chucking needle is 20N-45N.
It is noise-free and stable.
Applicable Bur: 1.6mm and should be conformed to ISO standard.
Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25-30 pressure atmosphere.
Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatolog, it is more professional.

Packing List:
- High speed handpiece push button 2 holes: 2 each
- E-type air motor 2-Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 each

4 Holes Handpiece Kit:

High speed handpiece Features:

- NSK style Pana Max high speed handpiece

- 4-Hole standard push button handpiece

- Single-way water spray

- It has unique appearance design and fluent outline.

- Smooth as silk, it has excellent texture.

- With people-friendly design, easy for operation.

- With best quality cartridge, easier for cleaning.

- With high-speed turbine rotation, it has better performances.

- Chucking power of chucking needle is 20N-45N.

- It is noise-free and stable.

- Applicable Bur: 1.6mm and should be conformed to ISO standard.

- Idling speed of handpiece should be no less than 370,000 rotations under working air pressure of 25- 30 pressure atmosphere.

- Special for operations such as clamping high-speed dentistry machine needle to drill and grind teeth in department of stomatology, it is more professional.

- It is only for people who have dentistry medical qualification.

Specification:

Description:

Standard Push button type, high speed handpiece, Single-way water spray

Needle Change Type

Push button

Air Pressure

180~250 KPa (1.8~2.5 kgf/cm2)

Water Pressure

198Kpa (2 kg)

Rotation Speed

370,000-420,000 rpm

Head Hight

13.14 mm

Head Diameter

φ11.2 mm

Bur Applicable

φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)

Noise

≤70dB



Low speed kits Features:
- E-type connector
- Wrench type
- Precise technology, Steady, no vibration while revolving, offering a steady operation.
- Suitable for any E-type handpiece accords with ISO standard
- 135°C Autoclavable, suitable for both steam and chemical autoclave

Contra angle handpiece
- Low Speed 22,000-27,000 rpm.
- The shank of the instrument mounted therein is 2.35 mm
- Fastening of the instruments with a turning latch
- Autoclavable 135°C
- For any lab or E-type motors

Straight Nosecone
- Working pressure: 0.3MPa ;
- 0.25MPa (Measure meter is installed at the end of air motor to measure the air pressure).
- Revolution: about 22000-27000r/min (adjustable between clockwise or anticlockwise)
- Noise: ≤68dB
- Air consumption: about 56L/min
- Ratio: 1:1
- Max speed of contra angle: 25000rpm/min.

Air Mortor EX-203C
- Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
- 1:1 Direct Drive
- 4 hole
- Max speed 20,000 min-1
Specifications

Air-in Pressure(kg/c㎡)

Motor Rotation(rpm)

Air Wastage:(N1/min)

2.5

22,000

42

3

25,000

51

4

27,000

72



Packing List:
- High speed handpiece push button 4 holes : 2 each
- E-type air motor 4 Hole: 1 each
- Straight nose cone: 1 each
- Contra Angle handpiece: 1 each
- Water spray nozzle: 1 each
- Oil spray nozzle: 1 each
- CAP Spanner: 1 each
